The PA700X is ViewSonic’s high brightness XGA business/education projector. With 4,500 ANSI Lumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or any other bright environment. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming more convenient. The projector also allows software updates via USB cable connection with simply your laptops, skipping trips to service centers. ​

High Brightness for Business & Education Environments​
Thanks to 4,500 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which areperfectly suitable for spaces with a lot of ambient light.

Ultra-Large Screen with Lower Cost-per-inch​​
The projector allows for an up-to-300” image size, which is much larger and easier to install thancommercial displays.

Easy and Flexible Connection​
The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices.You no longer have to unplug your existing device to switch to a new one. Simply use the on-screendisplay to select and change the input source.​

Present the Best with Vibrant Colors
Impress any audience with ViewSonic’s exclusive color technology and elevate your presentationwith a true-to-life color experience.

A Simpler Way to Update Projector Software​
Skip trips to the service center by keeping software up to date easily and onsite via USB cableconnection with your laptop.​​​

​​​*The latest projector softwareupdate can be found in the download section at the bottom of the page when available.​

USB Type A Power Supply​
A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminatingthe need for separate power adapters when streaming your multimedia content.

Specification

Design
Market positioning	Education
Product type	Standard throw projector
Product colour	White
LED indicators	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Display
Built-in display	No
Features
Interactive	No
Noise level (economic mode)	25 dB
HDCP	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Vietnamese
Number of OSD languages	22
HDCP version	1.4
Noise level	34 dB
Air filter	Yes
Lens system
Focus	Manual
Focal length range	21.85 - 24.01 mm
Aperture range (F-F)	2.42 - 2.53
Zoom capability	Yes
Digital zoom	2x
Optical zoom	1.1x
Throw ratio	1.94 - 2.16
Offset	115%
Light source
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	12000 h
Lamp type	UHP
Lamp power	240 W
Lamps quantity	1 lamp(s)
Multimedia
Built-in speaker(s)	Yes
RMS rated power	3 W
Number of built-in speakers	1
Network
Smart TV	No
Ethernet LAN	No
Wi-Fi	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Packaging content

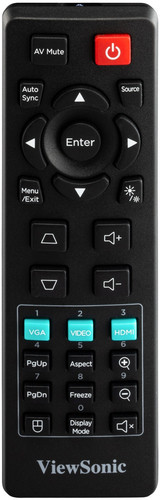

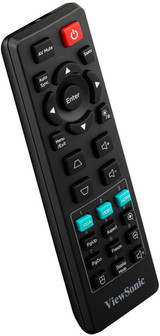

Remote control included	Yes
Remote control type	IR
Cables included	AC, VGA
Quick start guide	Yes
Warranty card	Yes
Ports & interfaces
HDMI connector type	Full-size
HDMI version	1.4
Service port type	USB Type-A
USB 2.0 ports quantity	1
USB 2.0 Type-A ports quantity	1
Serial interface type	RS-232
PC Audio in	Yes
PC Audio out	Yes
PC in (D-Sub)	Yes
VGA (D-Sub) ports quantity	2
HDMI ports quantity	2
DVI port	No
AC (power) in	Yes
Power
Power source	AC
Power consumption (typical)	295 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Projector
Smart projector	No
Screen size compatibility	762 - 7620 mm (30 - 300")
Projection distance	1.18 - 13.17 m
Projector brightness	4500 ANSI lumens
Projector native resolution	XGA (1024x768)
Contrast ratio (typical)	12500:1
Number of colours	1.07 billion colours
Horizontal scan range	15 - 102 kHz
Vertical scan range	23 - 120 Hz
Keystone correction, vertical	-40 - 40°
Storage
Card reader integrated	No
Technical details
Image lag time	33.2 ms
Video
Analog signal format system	NTSC, PAL, SECAM
Full HD	Yes
3D	No
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1080 (HD 1080)
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Weight & dimensions
Width	309 mm
Depth	234 mm
Height	115 mm
Weight	2.7 kg
Package width	400 mm
Package depth	337 mm
Package height	168 mm
Package weight	3.8 kg

Features

Education Standard throw projector White

4500 ANSI lumens

Lamp 4000 h

XGA (1024x768) 12500:1

Screen size compatibility: 762 - 7620 mm (30 - 300") Number of colours: 1.07 billion colours

Focus: Manual Zoom capability

Built-in speaker(s) 3 W

AC 295 W
