Description
Meet the world’s smallest workstation
- Compact, efficient Tiny with all the power of a regular workstation
- 96% smaller than a traditional desktop, can go where other PCs can't
- Intel vPro® with 13th Gen Intel® Core™ processors, optional discrete graphics
- Reliable, easy-to-deploy, & versatile, ISV-certified, supports up to 6 displays
- Ideal for architecture, engineering, finance, healthcare, & STEM education
- Compact, efficient Tiny with all the power of a regular workstation
- 96% smaller than a traditional desktop, can go where other PCs can't
- Intel vPro® with 13th Gen Intel® Core™ processors, optional discrete graphics
- Reliable, easy-to-deploy, & versatile, ISV-certified, supports up to 6 displays
- Ideal for architecture, engineering, finance, healthcare, & STEM education
Specification
Certificates | |
---|---|
Certification | ErP Lot 3,MIL-STD-810H |
Design | |
Chassis type | Mini PC |
Colour name | Black |
Volume | 1 L |
Placement supported | Horizontal/Vertical |
Cable lock slot | Yes |
Cable lock slot type | Kensington |
Product colour | Black |
Graphics | |
Discrete graphics card | Yes |
Discrete GPU manufacturer | NVIDIA |
On-board graphics card | Yes |
Discrete graphics card model | NVIDIA T400 |
Discrete graphics memory type | GDDR6 |
Discrete graphics card memory | 4 GB |
Number of discrete graphics cards | 1 |
On-board GPU manufacturer | Intel |
On-board graphics card family | Intel® UHD Graphics |
On-board graphics card model | Intel UHD Graphics 770 |
Graphics card Mini DisplayPort ports quantity | 3 |
Memory | |
Internal memory | 16 GB |
Maximum internal memory | 64 GB |
Internal memory type | DDR5-SDRAM |
Memory layout (slots x size) | 1 x 16 GB |
Memory slots | 2x SO-DIMM |
Memory clock speed | 4800 MHz |
Non-ECC | Yes |
Memory channels | Dual-channel |
Network | |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Cabling technology | 10/100/1000Base-T(X) |
LAN controller | Intel® I219-LM |
Wi-Fi | No |
Operational conditions | |
Operating temperature (T-T) | 10 - 35 °C |
Storage temperature (T-T) | -40 - 60 °C |
Operating relative humidity (H-H) | 20 - 80% |
Storage relative humidity (H-H) | 10 - 90% |
Operating altitude | 0 - 3048 m |
Non-operating altitude | 0 - 12192 m |
Packaging content | |
Display included | No |
Mouse included | Yes |
Keyboard included | Yes |
Performance | |
Motherboard chipset | Intel Q670 |
Audio chip | Realtek ALC256-VB |
Audio system | High Definition Audio |
Built-in speaker(s) | Yes |
Number of speakers | 1 |
Password protection | Yes |
Password protection type | BIOS, Power on, Supervisor |
Trusted Platform Module (TPM) | Yes |
Product type | Mini PC |
Ports & interfaces | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
Ethernet LAN (RJ-45) ports | 1 |
Combo headphone/mic port | Yes |
Power | |
Power supply | 230 W |
Power supply input voltage | 100 - 240 V |
Power supply input frequency | 50/60 Hz |
Processor | |
Processor manufacturer | Intel |
Processor family | Intel® Core™ i7 |
Processor generation | 13th gen Intel® Core™ i7 |
Processor model | i7-13700T |
Processor cores | 16 |
Performance cores | 8 |
Efficient cores | 8 |
Performance-core base frequency | 1.4 GHz |
Efficient-core base frequency | 1 GHz |
Efficient-core Max Turbo Frequency | 3.6 GHz |
Performance-core Max Turbo Frequency | 4.8 GHz |
Processor boost frequency | 4.9 GHz |
Processor cache | 30 MB |
Processor cache type | Smart Cache |
Processor threads | 24 |
Bus type | DMI4 |
Processor base power | 35 W |
Maximum turbo power | 106 W |
Processor special features | |
CPU configuration (max) | 1 |
Software | |
Operating system installed | Windows 11 Pro |
Operating system architecture | 64-bit |
Operating system language | English |
Storage | |
Total storage capacity | 512 GB |
Storage media | SSD |
Optical drive type | No |
Number of storage drives installed | 1 |
Total SSDs capacity | 512 GB |
Number of SSDs installed | 1 |
SSD capacity | 512 GB |
SSD interface | PCI Express 4.0 |
NVMe | Yes |
SSD form factor | M.2 |
Sustainability | |
Sustainability certificates | RoHS, TCO, ENERGY STAR, EPEAT Gold |
Weight & dimensions | |
Width | 179 mm |
Depth | 182.9 mm |
Height | 37 mm |
Weight | 1.4 kg |
Features
Mini PC Black 230 W |
Intel® Core™ i7 i7-13700T |
16 GB DDR5-SDRAM 4800 MHz 1 x 16 GB |
512 GB SSD |
NVIDIA T400 4 GB Intel UHD Graphics 770 |
Ethernet LAN 10,100,1000 Mbit/s |
Windows 11 Pro 64-bit |
Reason To Buy

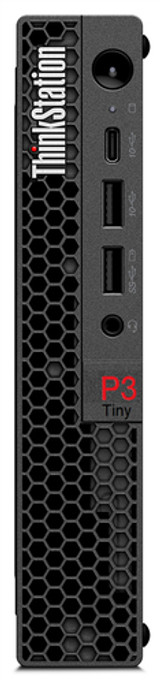

Engineered to go where other PCs can’t, the Lenovo ThinkStation P3 Tiny combines simple and efficient design with professional-level power. With a total volume of just 1L, it’s the world's smallest workstation and some 96% smaller than a traditional desktop. What it lacks in size, however, it more than makes up in uncompromising performance, powered by Intel vPro® with 13th Gen Intel® Core™ processors and optional NVIDIA® discrete graphics. It can also support up to six independent displays. |
Incredibly reliable and easy to deploy, the ThinkStation P3 Tiny offers great versatility. As well as an array of mounting options, you can put it on a bookshelf or desk, tuck it away behind a monitor, or use it as a powerful on-the-go desktop between work and home. A proven industry workhorse in a conveniently pint-sized package, it’s ideal for professionals working across architecture, engineering, finance, healthcare, and STEM education. |
With a choice of operating systems, including Windows 11 Pro and Linux®, the ThinkStation P3 Tiny can be configured to meet your most exacting needs. As well as optional NVIDIA® discrete graphics, it can host a vast amount of speedy DDR5 memory and SSD storage, and there’s an optional punch port that supports everything from HDMI to LAN connections. It comes with a USB mouse and keyboard, and the option of a dust filter to help extend the life of your ThinkStation. |
One of the cornerstones of the ThinkStation P3 Tiny workstation is reliability. MIL-SPEC-certified, it's been proven to meet military-grade standards and quality checks to ensure it will run in extreme conditions, from the Arctic wilderness to desert dust storms. It also comes with an array of independent software vendor (ISV) certifications, so you can power through heavy workloads in applications like AutoCAD®, Revit®, and SOLIDWORKS© without missing a beat.See the complete list of ISV certifications |
The ThinkStation P3 Tiny workstation comes with ThinkShield, a combination of hardware and software that work together to safeguard both your device and your data. This includes essential security features like Trusted Platform Module (TPM) that encrypts your data and programs to prevent unauthorized system access. It even has a self-healing BIOS that's programmed to restore your machine to its previous state if the BIOS becomes corrupt or is maliciously attacked. |
Warranty Information
3-year, Onsite
