Description
Personalised Performance: Intelligence and machine learning elevate productivity by automatically personalizing performance features across your entire ecosystem, making them the Dell’s most intelligent PCs.
Intelligent Collaboration: Get the Dell’s most intelligent collaboration experience with smart audio conferencing, connectivity and productivity features – all in one software.
Safe, secure and manageable: We ensure optimization and data collection follows a stringent process to keep your information safe. Any data we do gather is analyzed locally on your system to improve your personal PC experience.
Fingerprint reader Uses biometrics to log you into Dell Safeguard and respond.
Detect and prevent cyber attacks Dell Safe Data Prevent data breaches.
SecureWorks responds to security incidents with Safe-mute.
Dell Peripheral manager intelligent mic muting and video disabling.
2. USB-C port
3. Lock slot
4. HDMI
5. Headphone/mic input
6. (2) Thunderbolt 4
7. Optional smart card reader
Height (front): 22.17 mm (0.87 in.)
2. Width: 353.68 mm (13.92 in.)
3. Depth: 240.33 mm (9.46 in.)
Weight: 1.91 kg (4.20 lbs.)
Precision Mobile Workstations ship in packaging made from 100% recycled or renewable materials and is 100% recyclable.
Recycle your old device
Help us in our mission to make our products with at least 50% recycled or renewable content. Send your e-waste (any brand) to us for recycling or reuse in support of a circular economy.

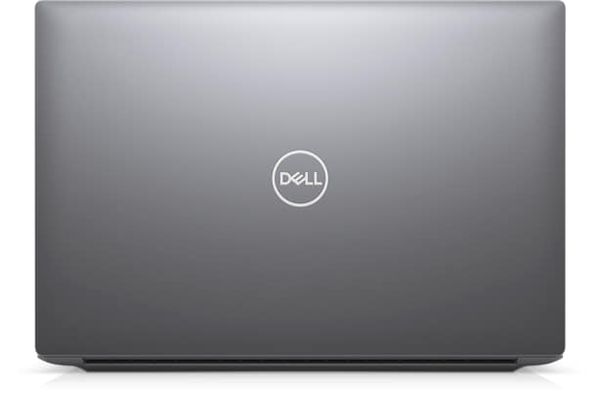

New Precision 5680 Workstation
Operating system
Available with Windows 11 or Linux Ubuntu.
Product Features
The Precision 5680 has a premium look and feel that delivers exceptional performance. With an optional OLED UHD+ touch display and 4 "Grade A" speakers, paired with up to NVIDIA RTX 5000 Ada Gen graphics it is an outstanding workstation for creative and design applications.
Intelligent performance
Processor
Up to 13th Gen Intel® Core™ , 14 Cores (6P+8E), 45W.Graphics
Intel Integrated graphics and up to NVIDIA RTX 5000 Ada Gen graphics.Scalable memory
Up to 64GB of 6000MT/s, DDR5 dual channel memory.Storage capabilities
2x M.2 2280 slot with PCIe Gen 4x4 support (4TB).Battery
4-cell (66Whr) or 6-cell (99.5Whr) Lithium-Ion polymer battery with Express ChargeBoost.Thermals
DOO fans, heat pipes, GORE and User Selectable Tables.Power to create your masterpieces
Built for work and design with creative applications like:- Design - 2D, 3D CAD
- Content creation
- Production
- Photo, video, and audio editing
- Web Design
- Graphic Design
Dell Optimizer
Intelligence built around you: Automatically personalise and boost the performance of your system and its entire ecosystem with Dell Optimizer, an AI-based optimization software that learns and responds to the way you work.Personalised Performance: Intelligence and machine learning elevate productivity by automatically personalizing performance features across your entire ecosystem, making them the Dell’s most intelligent PCs.
Intelligent Collaboration: Get the Dell’s most intelligent collaboration experience with smart audio conferencing, connectivity and productivity features – all in one software.
Safe, secure and manageable: We ensure optimization and data collection follows a stringent process to keep your information safe. Any data we do gather is analyzed locally on your system to improve your personal PC experience.
Independent Software Vendor (ISV) certification*
Precision workstations are tested to ensure the high-performance applications you rely on every day run smoothly.Security
Windows Hello Compatible IR camera recognizes you, increasing privacy and productivity.Fingerprint reader Uses biometrics to log you into Dell Safeguard and respond.
Detect and prevent cyber attacks Dell Safe Data Prevent data breaches.
SecureWorks responds to security incidents with Safe-mute.
Dell Peripheral manager intelligent mic muting and video disabling.
VR Compatibility
VR and AR capabilities allow you to experience fully-immersive content. Powerful enough for gaming, education, entertainment, and exploring the digital world. Precision 5680 has next-generation professional graphics and powerful performance normally found only in tower workstations.Ports & Slots
1. Full-SD2. USB-C port
3. Lock slot
4. HDMI
5. Headphone/mic input
6. (2) Thunderbolt 4
7. Optional smart card reader
Dimensions & Weight
1. Height (rear): 20.05 mm (0.80 in.)Height (front): 22.17 mm (0.87 in.)
2. Width: 353.68 mm (13.92 in.)
3. Depth: 240.33 mm (9.46 in.)
Weight: 1.91 kg (4.20 lbs.)
Sustainably-made
Responsible packagingPrecision Mobile Workstations ship in packaging made from 100% recycled or renewable materials and is 100% recyclable.
Recycle your old device
Help us in our mission to make our products with at least 50% recycled or renewable content. Send your e-waste (any brand) to us for recycling or reuse in support of a circular economy.
Specification
Audio | |
---|---|
Audio chip | Realtek ALC711-VD |
Number of built-in speakers | 4 |
Speaker power | 8 W |
Built-in microphone | Yes |
Number of microphones | 2 |
Battery | |
Battery weight | 363 g |
Battery capacity | 99.5 Wh |
Battery voltage | 11.55 V |
Battery recharge time | 3 h |
Fast charging | Yes |
Battery technology | Lithium-Ion (Li-Ion) |
Number of battery cells | 6 |
Camera | |
Front camera | Yes |
Front camera resolution (numeric) | 0.9 MP |
Front camera resolution | 1920 x 1080 pixels |
Front camera HD type | Full HD |
Video capturing speed | 30 fps |
Infrared (IR) camera | Yes |
Carbon footprint | |
Total carbon footprint | 475 kg of CO2e |
Total carbon emissions (Standard deviation) | 92 kg of CO2e |
Carbon emissions (Manufacturing) | 398 kg of CO2e |
Carbon emissions (Logistics) | 25 kg of CO2e |
Carbon emissions (Use) | 49 kg of CO2e |
Carbon emissions (End-of-Life) | 3 kg of CO2e |
Total carbon emissions (w/o Use phase) | 426 kg of CO2e |
PAIA version | 1.3.2 |
Design | |
Market positioning | Business |
Housing material | Aluminium |
Form factor | Clamshell |
Product colour | Grey |
Product type | Mobile workstation |
Colour name | Titan Gray |
Display | |
Contrast ratio (typical) | 1300:1 |
Maximum refresh rate | 60 Hz |
Colour gamut | 100% |
RGB colour space | DCI-P3 |
Pixel density | 142 ppi |
Display brightness | 500 cd/m² |
Anti-glare screen | Yes |
Native aspect ratio | 16:10 |
LED backlight | Yes |
Panel type | WLED |
HD type | Full HD+ |
Touchscreen | No |
Display resolution | 1920 x 1200 pixels |
Display diagonal | 40.6 cm (16") |
Graphics | |
On-board graphics card model | Intel Iris Xe Graphics |
Discrete graphics card memory | 12 GB |
Discrete graphics memory type | GDDR6 |
Discrete graphics card model | NVIDIA RTX 3500 Ada |
On-board graphics card | Yes |
Discrete graphics card | Yes |
Keyboard | |
Pointing device | Trackpad |
Keyboard language | UK English |
Numeric keypad | No |
Keyboard backlit | Yes |
Keyboard number of keys | 80 |
Memory | |
Internal memory | 32 GB |
Internal memory type | LPDDR5-SDRAM |
Memory clock speed | 6000 MHz |
Memory form factor | On-board |
Maximum internal memory | 32 GB |
Network | |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
Mobile network connection | No |
Wi-Fi data rate (max) | 2400 Mbit/s |
Antenna type | 2x2 |
WLAN controller model | Intel Wi-Fi 6E AX211 |
WLAN controller manufacturer | Intel |
Ethernet LAN | No |
Bluetooth | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 35 °C |
Storage temperature (T-T) | -40 - 65 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 0 - 95% |
Operating altitude | -15.2 - 3048 m |
Non-operating altitude | -15.2 - 10668 m |
Operating shock | 110 G |
Non-operating shock | 160 G |
Operating vibration | 0.66 G |
Non-operating vibration | 1.3 G |
Packaging content | |
Cables included | AC |
Performance | |
Accelerometer | Yes |
Ports & interfaces | |
USB Type-C DisplayPort Alternate Mode | Yes |
HDMI ports quantity | 1 |
HDMI version | 2.0b |
Thunderbolt 4 ports quantity | 2 |
Intel® Thunderbolt 4 | Yes |
Combo headphone/mic port | Yes |
Charging port type | USB Type-C |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Power | |
AC adapter power | 165 W |
AC adapter frequency | 50/60 Hz |
AC adapter input voltage | 100 - 240 V |
USB charging voltage | 20,5,9,15 V |
Processor | |
Performance-core boost frequency | 5 GHz |
Processor boost frequency | 5 GHz |
Efficient-core boost frequency | 3.7 GHz |
Processor cores | 14 |
Processor cache | 24 MB |
Processor cache type | Smart Cache |
Configurable TDP-down | 35 W |
Processor model | i7-13700H |
Processor family | Intel® Core™ i7 |
Processor generation | 13th gen Intel® Core™ i7 |
Processor manufacturer | Intel |
Processor special features | |
CPU configuration (max) | 1 |
Security | |
Cable lock slot | Yes |
Cable lock slot type | Wedge |
Trusted Platform Module (TPM) | Yes |
Trusted Platform Module (TPM) version | 2.0 |
Software | |
Operating system architecture | 64-bit |
Operating system language | Multilingual |
Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
Operating system installed | Windows 11 Pro |
Storage | |
Total storage capacity | 1 TB |
Storage media | SSD |
Total SSDs capacity | 1 TB |
Number of SSDs installed | 1 |
SSD capacity | 1 TB |
SSD interface | PCI Express 4.0 |
NVMe | Yes |
SSD form factor | M.2 |
SSD performance class | 40 |
Optical drive type | No |
Card reader integrated | Yes |
Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Sustainability | |
Sustainability certificates | ENERGY STAR, EPEAT Gold |
Weight & dimensions | |
Width | 353.7 mm |
Depth | 240.3 mm |
Height (front) | 2.62 cm |
Height (rear) | 2.62 cm |
Weight | 1.91 kg |
Features
Business Mobile workstation Clamshell Grey |
Intel® Core™ i7 i7-13700H |
40.6 cm (16") Full HD+ 1920 x 1200 pixels WLED LED backlight 16:10 |
32 GB LPDDR5-SDRAM 6000 MHz |
1 TB SSD |
NVIDIA RTX 3500 Ada 12 GB Intel Iris Xe Graphics |
Wi-Fi 6E (802.11ax) Bluetooth |
Lithium-Ion (Li-Ion) 99.5 Wh 165 W |
Windows 11 Pro 64-bit |
Reason To Buy
Accelerate anywhere work experiences by modernizing how you deploy, manage, and support devices with PC as a Service. Leverage both the built-in protections of the industry's most secure commercial PCs and software protections for advanced threats to help ensure a trusted workspace under a predictable price per month. |
Responsible packaging Precision Mobile Workstations ship in packaging made from 100% recycled or renewable materials and is 100% recyclable . Recycle your old device Help us in our mission to make our products with at least 50% recycled or renewable content. Send your e-waste (any brand) to us for recycling or reuse in support of a circular economy. |
VR and AR capabilities allow you to experience fully-immersive content. Powerful enough for gaming, education, entertainment, and exploring the digital world. Precision 5680 has next-generation professional graphics and powerful performance normally found only in tower workstations. |
Windows Hello Compatible IR camera recognizes you, increasing privacy and productivity. Fingerprint reader Uses biometrics to log you into Dell Safeguard and respond. Detect and prevent cyber attacks Dell Safe Data Prevent data breaches. SecureWorks responds to security incidents with Safe-mute. Dell Peripheral manager intelligent mic muting and video disabling. |
Precision workstations are tested to ensure the high-performance applications you rely on every day run smoothly . |
Intelligence built around you: Automatically personalise and boost the performance of your system and its entire ecosystem with Dell Optimizer, an AI-based optimization software that learns and responds to the way you work. Personalised Performance: Intelligence and machine learning elevate productivity by automatically personalizing performance features across your entire ecosystem, making them the Dell’s most intelligent PCs. Intelligent Collaboration: Get the Dell’s most intelligent collaboration experience with smart audio conferencing, connectivity and productivity features – all in one software. Safe, secure and manageable: We ensure optimization and data collection follows a stringent process to keep your information safe. Any data we do gather is analyzed locally on your system to improve your personal PC experience. |
Built for work and design with creative applications like: Design - 2D, 3D CAD Content creation Production Photo, video, and audio editing Web Design Graphic Design |
DOO fans, heat pipes, GORE and User Selectable Tables. |
4-cell (66Whr) or 6-cell (99.5Whr) Lithium-Ion polymer battery with Express ChargeBoost. |
2x M.2 2280 slot with PCIe Gen 4x4 support (4TB). |
Up to 64GB of 6000MT/s, DDR5 dual channel memory. |
Intel Integrated graphics and up to NVIDIA RTX 5000 Ada Gen graphics. |
Up to 13th Gen Intel® Core™ , 14 Cores (6P+8E), 45W. |
The Precision 5680 has a premium look and feel that delivers exceptional performance. With an optional OLED UHD+ touch display and 4 "Grade A" speakers, paired with up to NVIDIA RTX 5000 Ada Gen graphics it is an outstanding workstation for creative and design applications. |
Warranty Information
3 Years ProSpt
